Configuration: Redirect URIs & HTTPS

The OAuth2 handshake between your store and Canva depends on two URLs being registered identically on both sides, over HTTPS. This page covers both requirements in detail.

Where the URLs come from

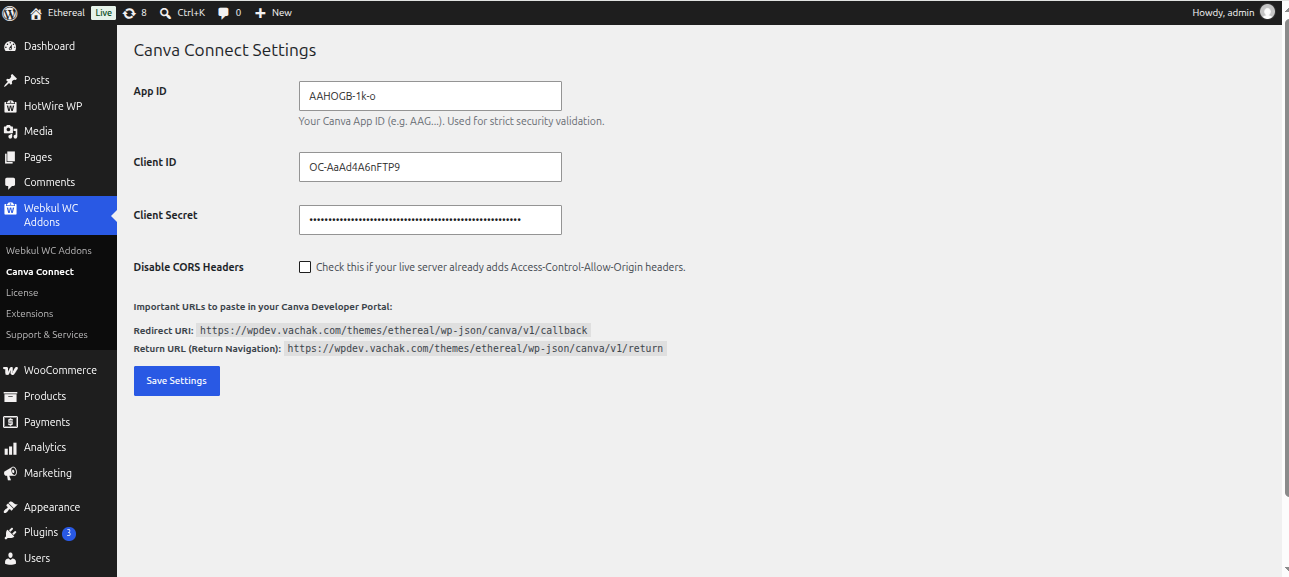

The plugin prints both URLs on Webkul WC Addons > Canva Connect, under the heading Important URLs to paste in your Canva Developer Portal:

Both are generated with WordPress's rest_url(), so they already account for:

• your site address, including www or its absence
• a subdirectory installation
• your permalink structure and REST prefix

Always copy them from your settings page. Typing them by hand is the single most common cause of a failed first connection.

For example, on a standard installation, the two values resolve to:

https://your-domain.com/wp-json/canva/v1/callback
https://your-domain.com/wp-json/canva/v1/return

The Redirect URI

This is where Canva sends the merchant's browser after the consent screen, carrying the authorization code and the state value.

Register it under: Developer Portal → Your integrations → your integration → Redirect URIs.

What the endpoint does when Canva calls it:

1. Reads code and state from the query string.
2. Strips everything non-alphanumeric from state and looks up the canva_state_{state} transient, which holds the product ID. A missing or expired transient returns "Security check failed. Invalid state."
3. Deletes the state transient, making it single-use.
4. Reads the PKCE code_verifier stored for that product.
5. Exchanges code + code_verifier for an access token at https://api.canva.com/rest/v1/oauth/token, authenticating with HTTP Basic (client_id:client_secret).
6. Stores the returned refresh_token in the canva_refresh_token option.
7. Creates or reopens the design and redirects into the Canva editor.

⚠ The URI must match byte for byte between WordPress and Canva. A trailing slash, http instead of https, or www. on one side only will be rejected by Canva as an invalid redirect.

The Return Navigation URL

This is where Canva sends the merchant when they click the Return to … button in the top-right of the editor.

Register it under: Developer Portal → Your integrations → your integration → Return navigation.

What the endpoint does:

1. Finds the most recent active canva_token_{post_id} transient.
2. Derives the post ID from that transient's name.
3. Clears the session transients for the token and the design.
4. Redirects the browser to wp-admin/post.php?post={id}&action=edit, the product edit screen.

If no session transient is found the endpoint answers "No active session found.", typically because the one-hour session expired, or because the browser returned long after the design was opened.

💡 The return button reads Return to {your site name}, in the screenshots it appears as Return to webkul-WooCommerce, because that is the site name registered on the Canva integration.

HTTPS is mandatory

⚠ Canva rejects OAuth redirects to plain HTTP URLs. A store served over http:// cannot complete the handshake, no matter how the credentials are configured.

HTTPS is required in three separate places:

Making WordPress emit HTTPS URLs

rest_url() derives its scheme from the home and siteurl options. If the settings page prints http://…, fix the site address rather than editing the URL by hand:

1. Settings > General: set both WordPress Address and Site Address to the https:// form.
2. Or define them in wp-config.php:

define( 'WP_HOME',    'https://your-domain.com' );
define( 'WP_SITEURL', 'https://your-domain.com' );

3. If WordPress sits behind a reverse proxy or load balancer that terminates TLS, tell it so, otherwise it will keep generating http:// links:

if ( isset( $_SERVER['HTTP_X_FORWARDED_PROTO'] ) && 'https' === $_SERVER['HTTP_X_FORWARDED_PROTO'] ) {
    $_SERVER['HTTPS'] = 'on';
}

Place this above the require_once ABSPATH . 'wp-settings.php'; line.

A local or staging installation still requires a valid SSL certificate. Two workable options:

• A public HTTPS tunnel: expose the local site through a tunnelling service and use the public HTTPS hostname as both the Redirect URI and CANVA_BACKEND_HOST. This is the most reliable route, because Canva's servers can reach it.
• A self-signed certificate: sufficient for the browser-side redirects once you trust the certificate locally, but Canva's own servers must still be able to reach the callback. Use this only when the host is publicly resolvable.

⚠ Plain http://localhost and XAMPP-style setups without HTTPS will not work. This is a Canva platform restriction, not a plugin limitation.

Verifying the setup

Run each check in order:

1: The REST routes answer.

curl -I https://your-domain.com/wp-json/canva/v1/products

Expect HTTP 401 (route exists, token demanded). A 404 means permalinks need flushing at Settings > Permalinks.

2: The callback is reachable over HTTPS.

curl -sS -o /dev/null -w '%{http_code} %{ssl_verify_result}\n' \
  https://your-domain.com/wp-json/canva/v1/callback

Expect 200 with an ssl_verify_result of 0. A non-zero verify result means the certificate chain is incomplete and Canva's servers will reject it.

3: The scheme is right. Open the settings page and confirm both printed URLs start with https://.

4: End to end. Click Design with Canva on a product and approve the consent screen. Landing in the Canva editor confirms the whole chain.

Common Redirect Errors

More detail in Troubleshooting.
