Canva Developer Portal & Configuration

Follow these steps to create your Canva Developer App, generate OAuth credentials, upload the app bundle, configure WooCommerce settings, manage CORS headers, and configure WordPress permalinks.

Step 1: Create an App in Canva Developer Portal

  • What to click: Visit the Canva Developer Portal, log in to your Canva account, click Your apps, and click Create an app.
  • What to enter: Enter your app name (e.g., Webkul App or My Store Canva Connector).
  • What to copy: Copy the generated App ID (starts with AAHOG...).
  • Expected result: Your Canva App is created and assigned a unique App ID used for token validation.

Step 2: Create Integration & OAuth Credentials

  • What to click: In the Canva Developer Portal, switch to the Your integrations tab and click Create an integration.
  • What to do:
    1. Under Configuration, copy the Client ID (starts with OC-...).
    2. Click Generate secret to generate and copy the Client Secret.
    3. In the Scopes tab, enable the required permissions:
      • design:content:read
      • design:content:write
      • design:meta:read
      • asset:read
      • asset:write
  • Expected result: OAuth 2.0 credentials and permissions are created for your store.

Step 3: Upload App Bundle (Code Upload)

  • What to click: In your Canva App settings, navigate to Build > Inside Canva > Code upload (or App source).
  • What to do:
    1. Select JavaScript bundle.
    2. Click Choose file and upload your compiled dist/app.js bundle (maximum size 5MB).
    3. Under Translations, upload your language file (e.g., messages_en.json) if needed.
  • Expected result: The bundle is uploaded, registering the Webkul App inside the Canva editor's left panel.

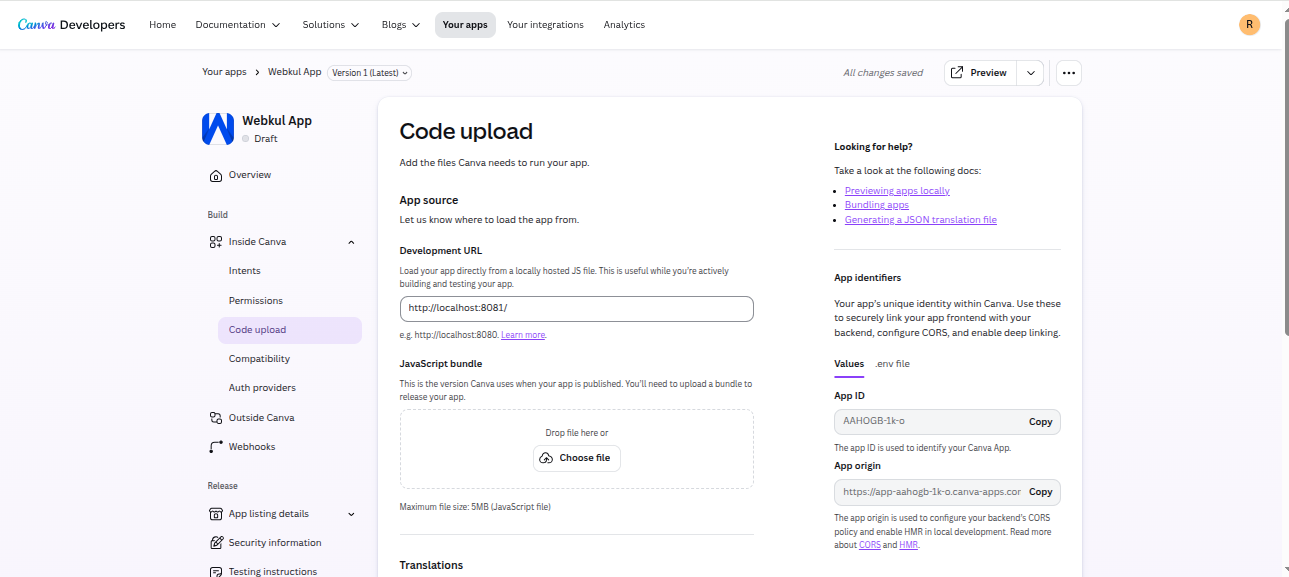

Canva Developer Portal Code Upload and App Identifiers

Step 4: Configure WooCommerce Canva Connect Settings

  • What to click: In your WordPress Admin, go to Webkul WC Addons > Canva Connect.
  • What to enter:
    1. App ID: Paste the App ID copied from Canva Developer Portal.
    2. Client ID: Paste the Client ID from your Canva Integration.
    3. Client Secret: Paste the Client Secret.
  • What to copy & paste into Canva:
    • Copy the Redirect URI displayed at the bottom (https://your-domain.com/wp-json/canva/v1/callback) and paste it into the Redirect URI field of your Canva Integration.
    • Copy the Return URL (https://your-domain.com/wp-json/canva/v1/return) and paste it into the Return Navigation URL field in Canva.
  • What to click: Click Save Settings.
  • Expected result: WordPress securely stores the credentials and the OAuth handshake is established.

Canva Connect Settings in WooCommerce Admin

Step 5: CORS Headers & HTTPS Setup

  • HTTPS Requirement: Your WordPress store must have a valid SSL certificate (https://). Canva will reject unsecured http:// API requests.
  • Disable CORS Headers Checkbox:
    • Leave unchecked (Default): The plugin automatically manages and sends required CORS headers (Access-Control-Allow-Origin: *, Authorization, Content-Type) for Canva editor iframe requests.
    • Check the box only if: Your web server (Nginx/Apache/Cloudflare) already injects its own Access-Control-Allow-Origin header to avoid duplicate header conflicts.
  • Expected result: Cross-origin communication between the Canva editor sandbox and your WooCommerce REST API operates smoothly without browser errors.
  • What to click: Go to Settings > Permalinks in your WordPress Admin.
  • What to select: Under Common Settings, select Post name (/%postname%/).
  • What to click: Click Save Changes.
  • Expected result: WordPress permalinks are flushed, ensuring all /wp-json/canva/v1/* REST API endpoints route properly.

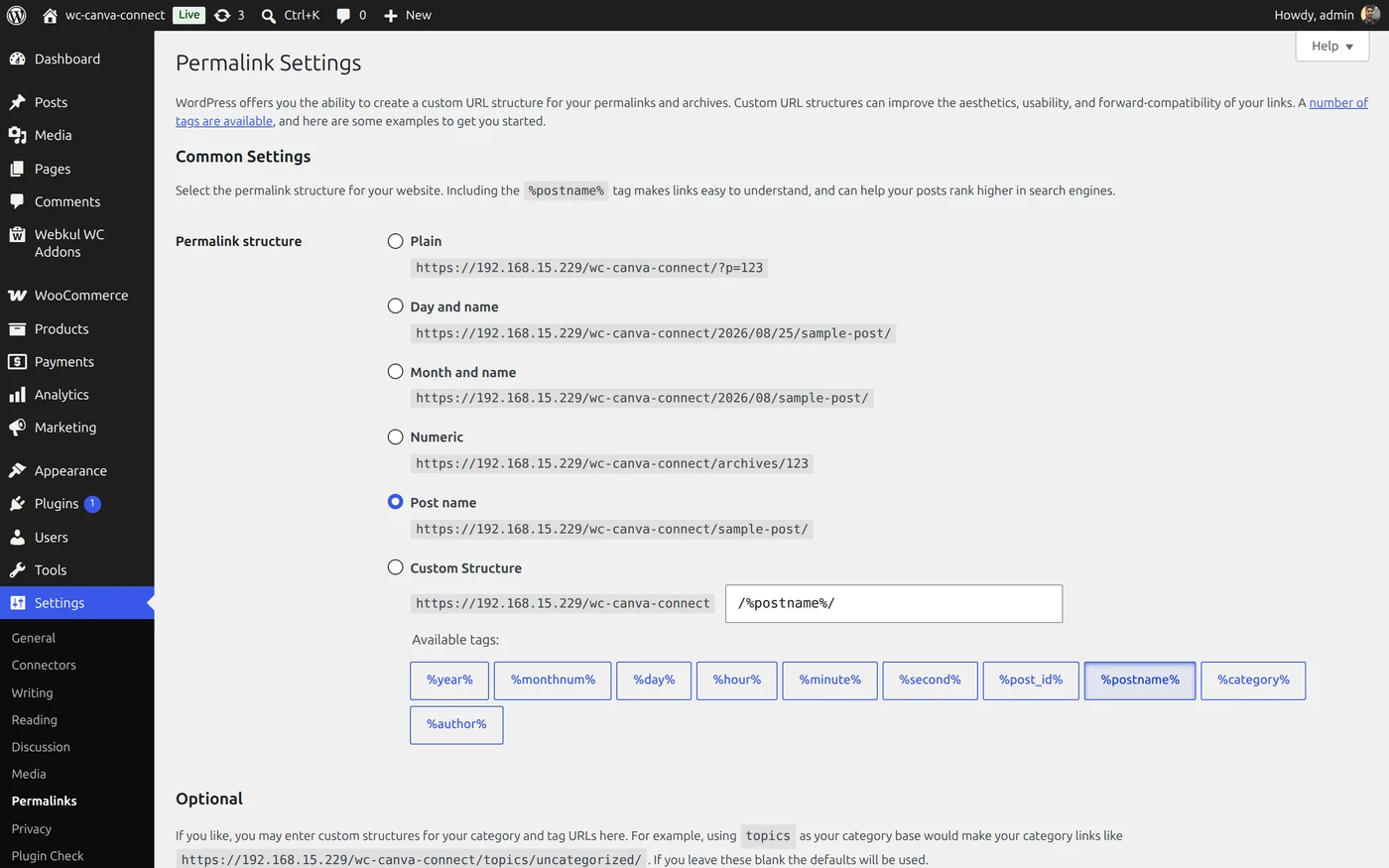

WordPress Permalinks Post Name Setting
