Node.js Socket Server & Security Setup

Physical Globalpay credit/debit card terminals communicate over low-latency TCP socket channels. To enable instant data transmission between the cashier's web browser interface and physical hardware, the plugin mounts a dedicated WebSocket bridge script into the native WooCommerce Point of Sale Node Server.

Accessing Node Server Configuration

Navigate to Point of Sale → Settings → Node Server in your WordPress administration sidebar.

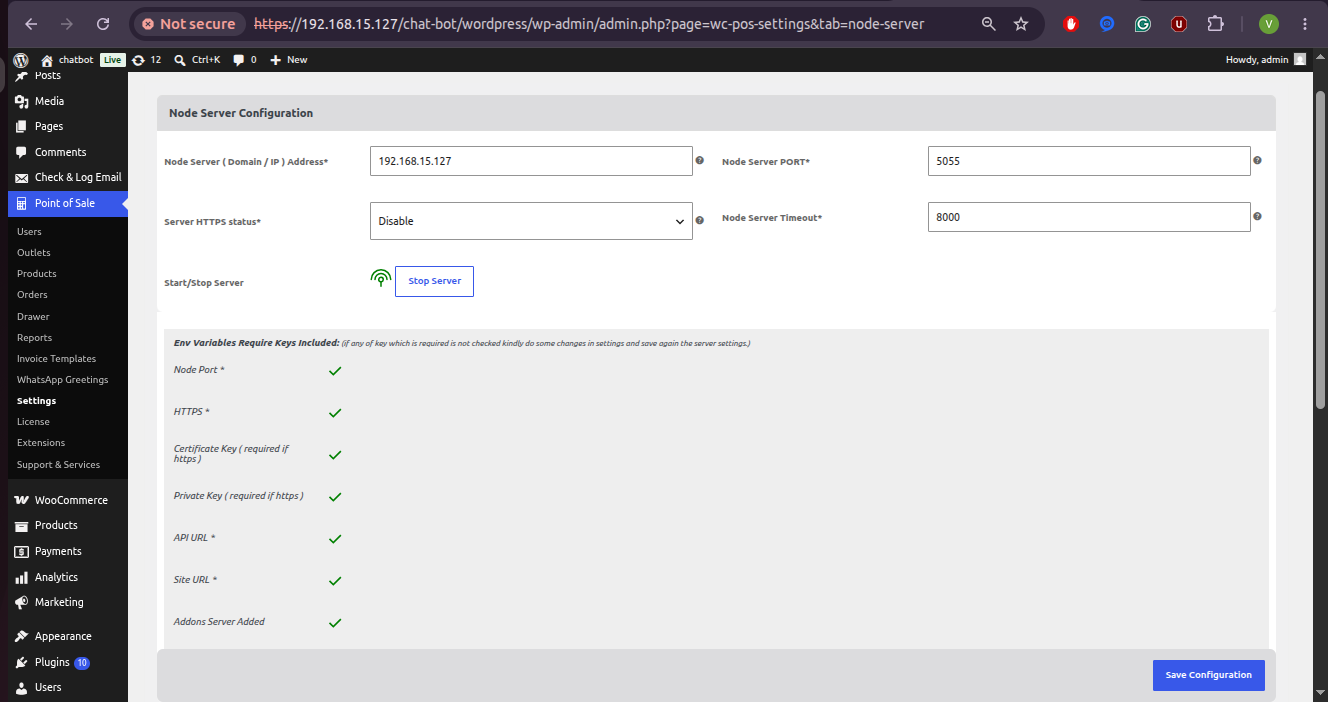

Node Server Settings Screen

Configuration Settings

Core Server Settings

Node Server (Domain / IP) Address: The domain name or IP address (e.g. 192.168.15.127) of the server hosting the socket application.
Node Server PORT: The port number allocated for socket bridge listening (e.g. 5055 or 8081).
Server HTTPS Status: Select Enable or Disable SSL/TLS encryption.
Important: If your WordPress site uses HTTPS (https://), you MUST set Server HTTPS Status to Enable and provide valid SSL certificate keys to prevent browser mixed-content security blocks.
Node Server Timeout: Connection retry timeout in milliseconds (e.g. 8000 ms).
Start/Stop Server Action: Quick action control button (Start Server / Stop Server) to launch or stop the Node server application directly from WordPress.

SSL Certificates Setup (for HTTPS Stores)

When HTTPS is enabled, scroll down to the Node Server SSL Keys (If Https) section:

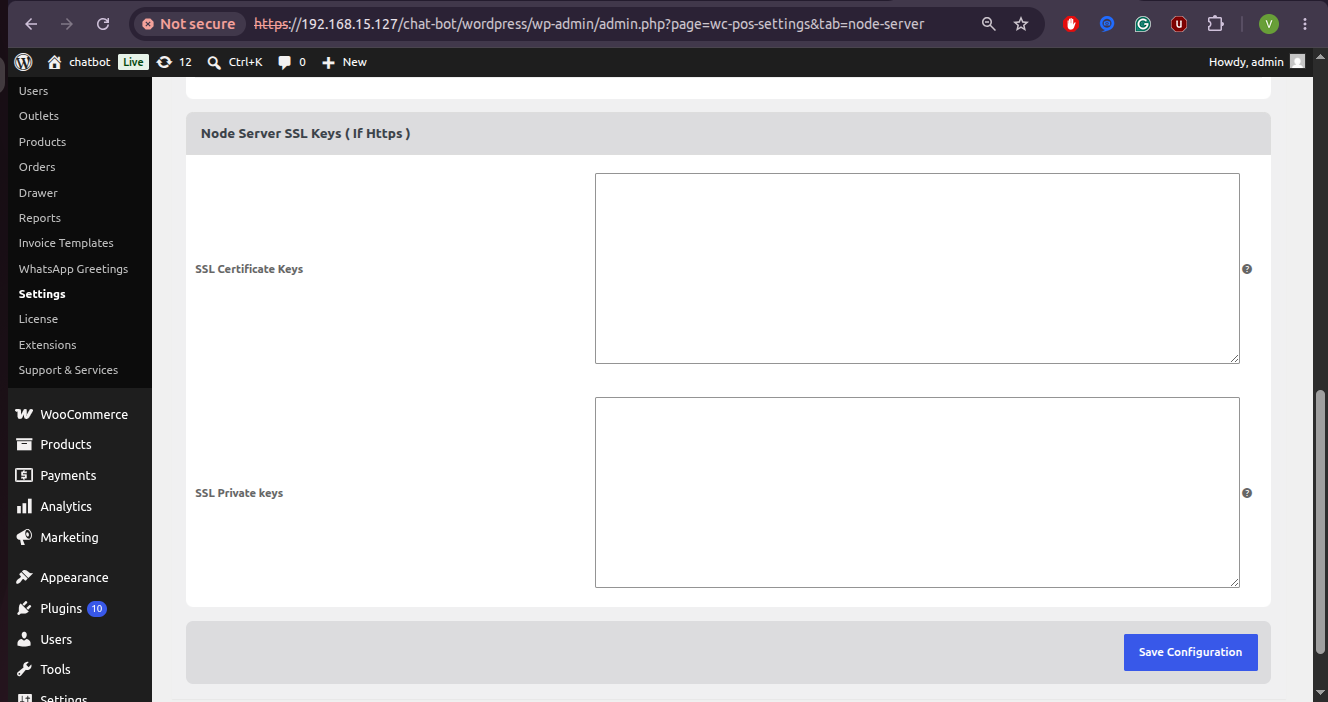

Node Server SSL Keys Screen

SSL Certificate Keys: Paste the raw PEM-encoded certificate content (-----BEGIN CERTIFICATE-----...).
SSL Private Keys: Paste the raw PEM-encoded private key content (-----BEGIN PRIVATE KEY-----...).

Environment Health Checklist

The Node Server configuration screen provides real-time health validation checkmarks (✓) confirming environment readiness:

Indicator	Description	Readiness
Node Port	Validates port assignment availability	`✓`
HTTPS	Confirms SSL protocol state configuration	`✓`
Certificate Key	Validates SSL public certificate format and file path	`✓`
Private Key	Validates SSL private key format and file path	`✓`
API URL	Verifies WordPress REST API endpoint routing	`✓`
Site URL	Confirms primary store domain URI configuration	`✓`
Addons Server Added	Confirms Globalpay socket bridge extension registration	`✓`

Socket Server Room Isolation & Event Protocol

The Node socket bridge (server/src/index.js) maintains isolated socket rooms for cashier sessions to prevent cross-talk between multiple store outlets:

// Room Name Generation
POS Room:    POS:wkposGlobalPayterminal-{email}-{id}
Mobile Room: MOBILE:wkposGlobalPayterminal-{email}-{id}

Event Protocol Reference

Event Name	Direction	Description
`createGlobalPayPayment`	POS → Terminal	Transmits checkout payment payload (baseAmount, invoiceNbr, Order ID) to terminal.
`getMobileGlobalPayPayment`	Terminal → POS	Transmits transaction outcome callback (approval/decline) to POS cashier.
`isGlobalPayPOSConnected`	Terminal → POS	Polls POS cashier session connection status.
`isGlobalPayConnected`	POS → Terminal	Polls payment terminal connection status.
`unexpectedDisconnect`	Server → Both	Notifies both clients of unexpected network disconnections and cleans up socket registries.

Multi-Layer Authentication & Security

1. Bearer JWT Token Verification

Cashier sessions issue a cryptographically signed Bearer JWT token stored in user cookies.
Socket connection requests verify tokens against WKWCPOS_Jwt_Auth::get_instance()->verify_token($token).
Requests lacking a valid token are rejected with an Invalid authorization token exception.

2. Role-Based Access Control

Restricts REST API endpoints (/wp-json/pos/v1/...) and socket channel binding strictly to users with Point of Sale Cashier or Administrator roles.

3. Nonce CSRF Protection

Critical AJAX actions and state modifications enforce WordPress Nonce verification.
