Sync & Scheduler

The Sync page is the control center for pushing WooCommerce data into Power BI. It supports three modes — Manual, Scheduled, and Live — plus incremental (delta) sync, batch processing, and an automatic retry queue.

URL: /wp-admin/admin.php?page=wkpbic-sync

Schedule Configuration — sync mode, frequency, start time, statistics update, and update type.

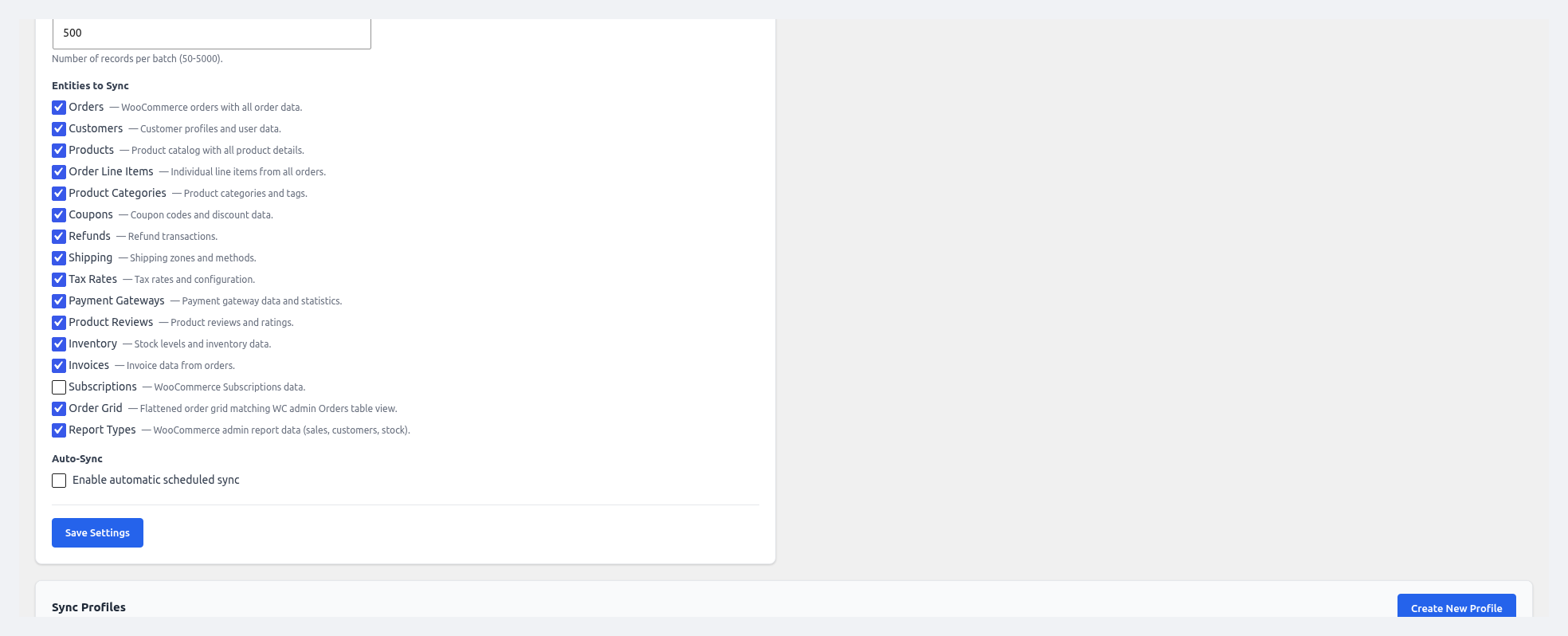

Entity checkboxes — select which WooCommerce data types to sync (orders, customers, products, etc.).

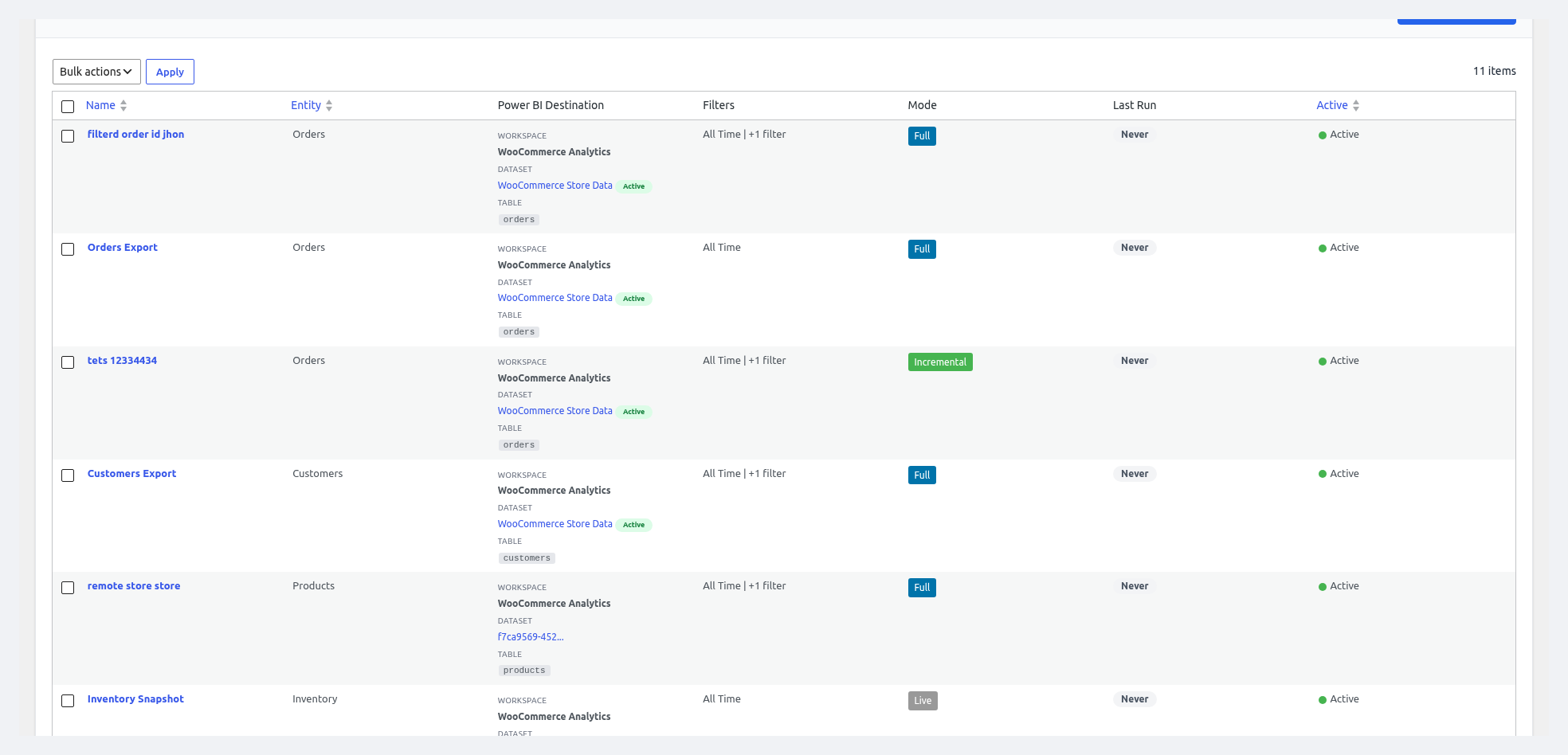

Sync Profiles table — saved export jobs with Power BI destination, filters, mode, and status.

Choosing a Sync Mode

Sync mode is set on the General Settings tab (Plugin Mode). The Sync page then shows mode-specific controls.

Manual Sync

Sync Now

1. Open the Sync page.
2. In the Entity Selector, pick one or more entities (e.g. Orders, Products).
3. (Optional) Choose Full or Incremental sync.
4. Click Sync Now.
5. A live progress bar and log panel show each batch, row counts, and any errors.

Trigger from WP-CLI

wp wkpbic sync --entity=orders
wp wkpbic sync --profile="Daily Orders"
wp wkpbic sync --full

Trigger from REST API

POST /wp-json/wkpbic/v1/sync
{
  "entity": "orders",
  "mode": "incremental"
}

See the REST API page for the complete endpoint list.

Scheduled Sync

Configuration

How it works under the hood

• The plugin registers a WordPress cron event named wkpbic_scheduled_sync with the selected interval.
• Each run is handled by Action Scheduler so it survives page loads and server restarts.
• Failed batches are automatically added to the retry queue, which uses exponential backoff (1 min → 5 min → 30 min → 3 hr).
• After each cron run, a summary is written to Logs and any triggered alerts fire.

Verifying cron is running

# List scheduled events
wp cron event list | grep wkpbic

# Force a run right now (useful for testing)
wp cron event run wkpbic_scheduled_sync

If WordPress pseudo-cron is unreliable, configure a system cron:

*/5 * * * * curl -s https://your-domain.com/wp-cron.php?doing_wp_cron > /dev/null

Live (Real-Time) Mode

When Plugin Mode is set to Live, the plugin hooks into WooCommerce events and pushes affected rows within seconds.

Live Mode Settings

Incremental (Delta) Sync

Incremental sync uses a watermark (the timestamp of the most recently synced row) to push only new or changed data. It dramatically reduces bandwidth and API calls.

• Per-entity watermarks are stored in wp_options.
• Any entity with a date_modified field supports incremental.
• Orders and Products also detect status/stock changes.
• Full sync resets the watermark.

To force a full resync of a single entity:

wp wkpbic sync --entity=orders --full

Or tick the Reset Watermark checkbox on the Sync page before clicking Sync Now.

Retry Queue

Failed batches (network timeout, rate limit, transient API error) are automatically re-queued with backoff:

The retry queue runs via Action Scheduler. View pending retries at Logs → Retry Queue.

Sync Page Layout Summary

┌─ Mode Indicator ─────────────────────────────┐
│ Current Mode: Scheduled — Next run: 10:00 am │
├─ Entity Selector ─────────────────────────────┤
│ [ ] Orders  [ ] Products  [ ] Customers …    │
├─ Actions ─────────────────────────────────────┤
│ [Sync Now]  [Full Sync]  [Reset Watermark]   │
├─ Progress Panel ──────────────────────────────┤
│ 🟢 Orders — batch 4/12 — 2,412 rows pushed   │
│ 🟢 Products — batch 2/3 — 620 rows pushed    │
├─ Recent Sync Log (last 10) ──────────────────┤
│ ✓ 2026-04-09 09:00 — Orders — 12,450 rows    │
│ ✓ 2026-04-09 09:00 — Products — 3,210 rows   │
│ ✗ 2026-04-09 08:00 — Refunds — rate limited  │
└───────────────────────────────────────────────┘
